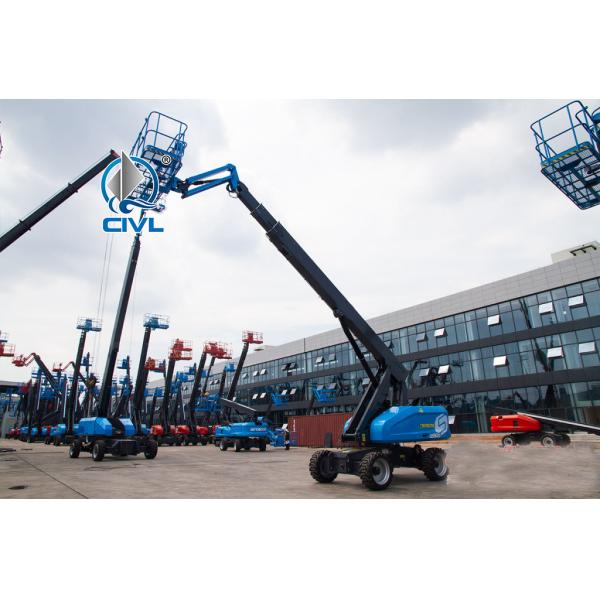

20m Long Arm Bucket Truck New Straight Arm Aerial Work Platform 36kw Engine Telescopic Boom
20m Long Arm Bucket Truck Straight Arm Aerial Work Platform Telescopic Boom 4WD 2WD Wheel Drive
Description:
Highlights:
The most economical and practical small and medium model
■ The width is only 2.28 meters, which is unique in the industry, and the working height is up to 18 meters and 20 meters, which can meet most of the jobs that are medium and short and have high requirements for off-road performance.
Powerful off-road capability
■ 45% climbing capability, and the patented technology of anti-skid control while walking ensures strong off-road capability
Accurately approaching the job target
■ 3 full-scale handle gradient control, boom luffing, boom telescopic, turntable rotation and walking speed, the movement starts and stops smoothly, and accurately approaches the job target
Intelligent maintenance and inquiry
■ Intelligent 7-inch display screen, display fault and status information, easy to view machine status and fault diagnosis, parameter inquiry and setting
Safe and reliable
■ Simple and reliable, the limit switch detects and controls the working range
Specification:
| size |
| maximum platform height | 18m |
| maximum working height | 20m |
| maximum horizontal extension | 14.7m |
| A length - stowed state | 9.33m |
| B width - stowed state | 2.28m |
| C height - stowed state | 2.43m |
| D wheelbase | 2.44m |
| Ground clearance | 0.23m |
| Platform Dimensions (L × W × H) | 1.83×0.85×1.1m |
| performance |
| Rated load | 250kg |
| Turntable rotation | 360° continuous |
| Platform rotation | 160° |
| Driving speed - stowed state | 6km/h |
| Travel speed - lift state | 1.1km/h |
| Gradeability | 45%(4WD) |
| Inside turning radius | 3.48m |
| outer turning radius | 6.29m |
| Turntable tail sweep | 0.86m |
| Allowable inclination when working | 5° |
| Maximum noise during normal operation | 82dB(A) |
| Drive × Steer | 4WD×2WS |
| Tire Size / Type | 33×12-20/ solid |
| power |
| power source | 35.7kW |
| control voltage | 12V DC |
| Fuel Tank Volume - Diesel | 110L |
| Hydraulic tank volume | 110L |
| weight |
| weight | 10,410kg(4WD) |
Photos:
Working scene
Application
Adopting the design concept of sturdiness and durability, excellent and reliable performance,
it provides users with a safe aerial work platform to meet the needs of challenging working conditions.
Widely used in large steel structure, construction engineering, shipbuilding industry, curtain wall engineering,
petrochemical and other industries.
